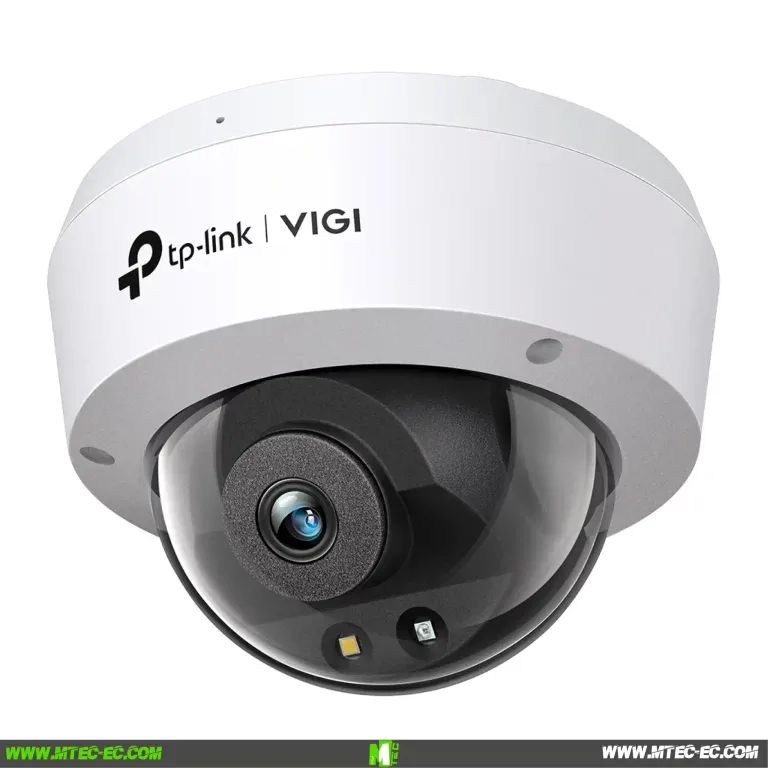

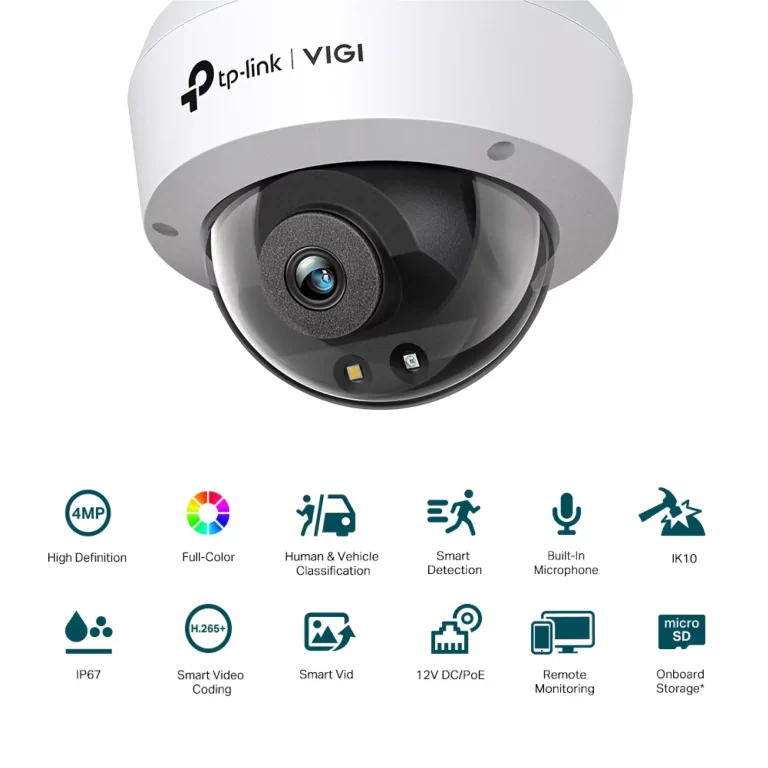

La Tp-link VIGI C240 es una cámara IP tipo dome de 4 MP Full-Color diseñada para vigilancia profesional. Ofrece visión a color 24/7, detección inteligente de humanos y vehículos, notificaciones de eventos, micrófono integrado y compatibilidad ONVIF. Su resistente carcasa IP67 e IK10 permite instalación en exteriores con PoE o 12 V DC, mientras que la compresión H.265+ reduce el uso de ancho de banda y almacenamiento. Ideal para seguridad de negocios y hogares

•  CÁMARA
  • Sensor de Imagen 1/3” Progressive Scan CMOS
  • Velocidad del obturador 1/3 to 1/10000 s
  • Obturador lento Yes
  • Iluminación mínima Color: 0.005 Lux; 0 Lux with IR/White Light
  • Mecanismo día/noche IR Cut Filter
  • Switch día/noche Unified/ Scheduled/ Auto
• LENTES
  • Tipo Fixed Focal Lens
  • Longitud Focal 2.8 mm/4 mm
  • Apertura 2.8 mm: F1.6
  • 4 mm: F1.6
  • FOV 2.8 mm:
  • Horizontal FOV: 95.7°, Vertical FOV: 51.7°, Diagonal FOV: 113.0°
  • 4 mm:
  • Horizontal FOV: 79.7°, Vertical FOV: 42.9°, Diagonal FOV: 93.9°
  • Montura del lente M12
  • Distancia DORI 2.8 mm:
  • Detect: 64 m (209 ft)
  • Observe: 27 m (87 ft)
  • Recognize: 13 m (42 ft)
  • Identify: 6 m (21 ft)
  • 4 mm:
  • Detect: 80 m (262 ft)
  • Observe: 33 m (109 ft)
  • Recognize: 16 m (52 ft)
  • Identify: 8 m (26 ft)
• Angle Adjustment (Manual)
  • Range Pan: 0° to 355°
  • Tilt: 0° to 75°
• ILLUMINATOR
  • IR LED Quantity: 1
  • Range: 30m
  • Wavelength: 850nm
  • White LED Quantity: 1
  • Range: 30m
  • Illuminator On/Off Control Auto/Scheduled/Always on/Always off
• VIDEO
  • Max. Resolution 2560 × 1440
  • Main Stream Frame Rate:
  • 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
  • 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
  • Resolution:
  • 2560×1440,2304×1296, 2048×1280, 1920×1080, 1280×720
  • Resolution: 640×480,352×288, 320×240
  • Bit Rate Control CBR, VBR
  • Compresión de Video Main Stream: H.265+/H.265/H.264+/H.264
  • Sub-Stream: H.265/H.264
  • H.264 Type Main Profile/High Profile
  • H.264+ Main Stream Supported
  • H.265 Type Main Profile
  • H.265+ Main Stream Supported
  • Video Bit Rate Main Stream: 256 Kbps to 4 Mbps
  • Sub-Stream: 64 Kbps to 512 Kbps
• Image
  • Image Settings Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR,
  • White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation(90°/270°)
  • Image Enhancement BLC/3D DNR/HLC/SmartIR
  • Wide Dynamic Range DWDR
  • SNR ≥ 52 dB
  • Image Parameters Switch Yes
  • Privacy Mask Up to 4 Masks
  • ROI 1 Region
  • OSD Setting Yes
• AUDIO
  • Comunicación de audio N/A
  • Audio Input Yes
  • Audio Output N/A
  • Audio Compression Yes
  • Audio Sampling Rate 8KHz
  • Environment Noise Filtering Yes
  • Audio Bit Rate 64 Kbps(G.711 alaw)
• NETWORK
  • Protocolo TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS,
  • RTSP, NTP, UPnP UDP, SSL/TLS
  • ONVIF Yes
  • API ONVIF
  • Simultaneous Live View 3 Main Streams & 3 Sub-Streams
  • Client VIGI App, VIGI Security Manager, Web UI
  • Web Browser Google Chrome® 57 and above
  • Firefox® 52 and above
  • Safari® 11 and above
  • Microsoft® Edge 91 and above
  • Cloud Yes
  • Seguridad Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
• ALARMA Y GESTIÓN DE EVENTOS
  • Smart Event Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
  • Basic Event Motion Detection, Video Tampering Detection, Exception ( Illegal Login)
  • Alarm Linkage White Light Flashing, Message Push
  • Linkage Method N/A
  • Output Notification Message Push
• INTERFACES
  • Network Interface 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
  • Alarm N/A
  • Reset Button Yes
  • Power DC Power Port
  • On-board Storage Built-in Memory Card Slot, Support MicroSD Card, Up to 256 GB
  • Built-in Microphone Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera
  • Built-in Speaker N/A
  • Audio N/A
• Contenidos del Paquete VIGI Network Camera
  • Quick Start Guide
  • Waterproof Cable Attachments
  • Mounting Accessories
• Más Detalles TP-LINK VIGI C240
