Descripción

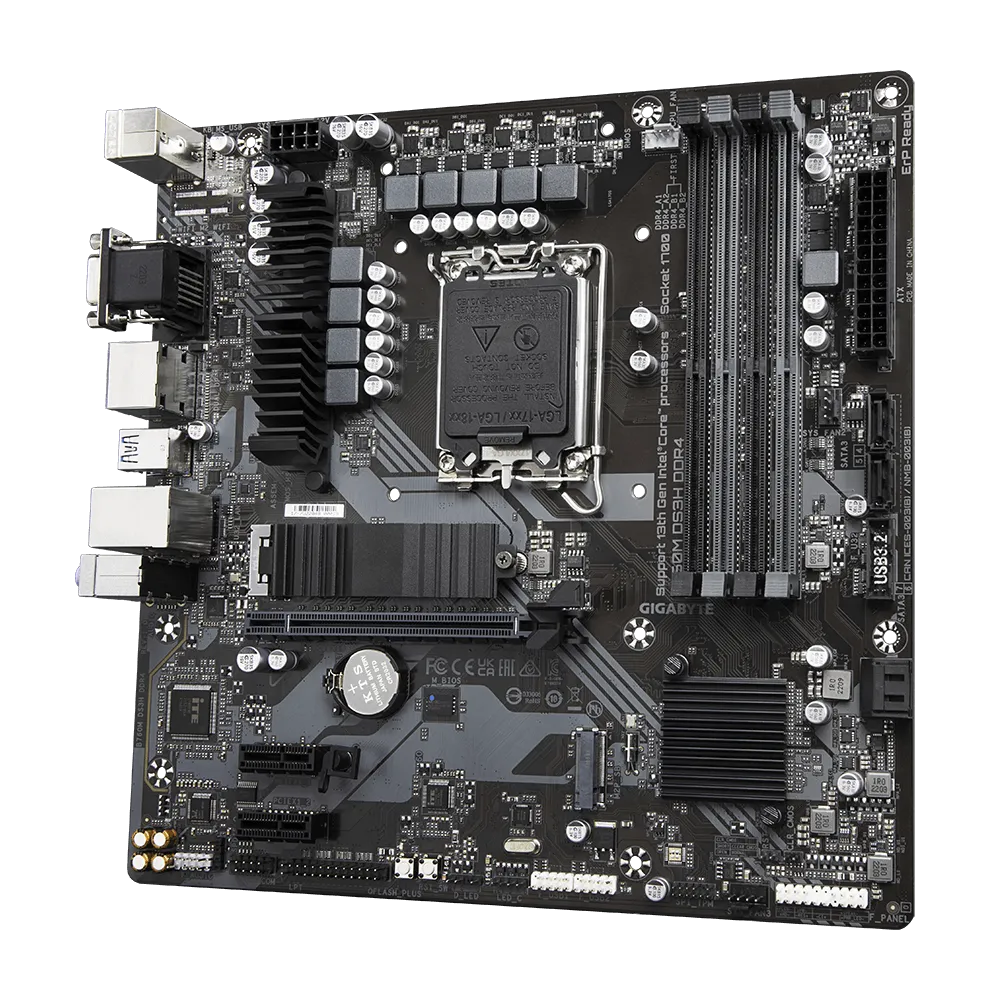

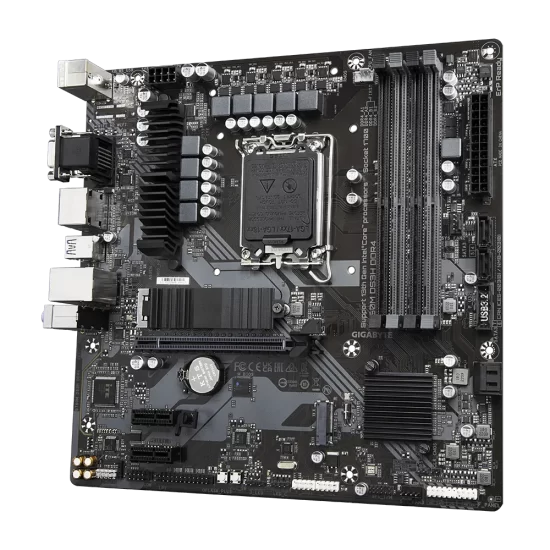

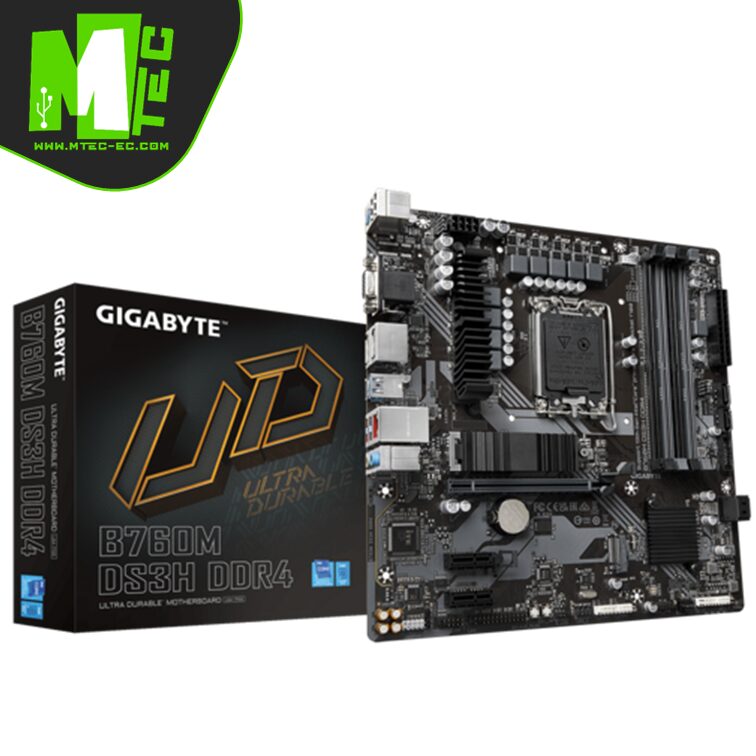

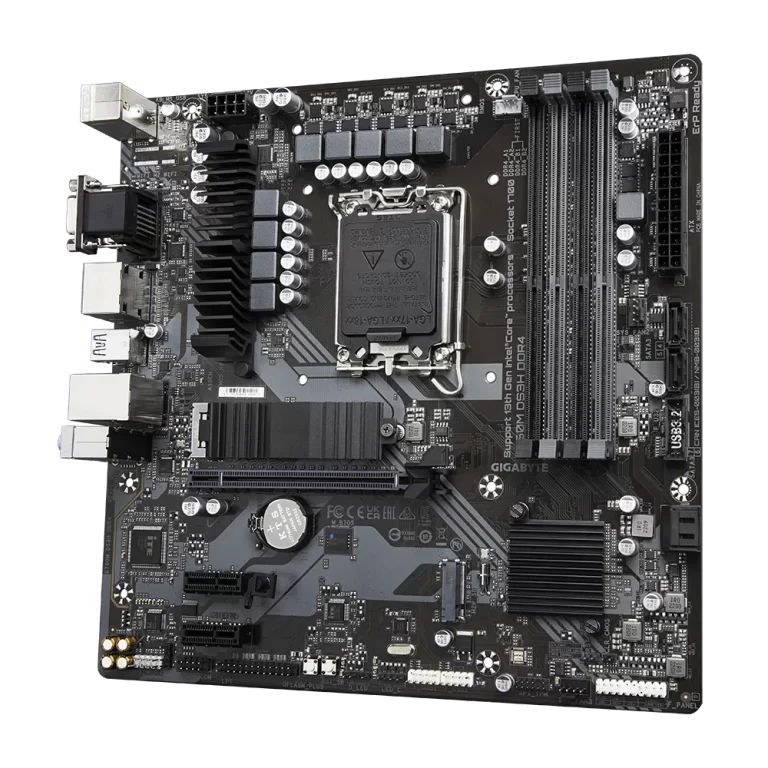

- Gigabyte B760M DS3H DDR4
- Procesador LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
- Chipset Intel® B760 Express Chipset
- Memoria DDR4 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
- Audio Realtek® Audio CODEC
- LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
- Conectores Internos E/S
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x CPU fan header
- 3 x system fan headers
- 1 x addressable LED strip header
- 1 x RGB LED strip header
- 2 x M.2 Socket 3 connectors
- 4 x SATA 6Gb/s connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x USB 3.2 Gen 1 header
- 2 x USB 2.0/1.1 headers
- 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
- 1 x serial port header
- 1 x parallel port header
- 1 x S/PDIF Out header
- 1 x Q-Flash Plus button
- 1 x reset button
- 1 x reset jumper
- 1 x Clear CMOS jumper

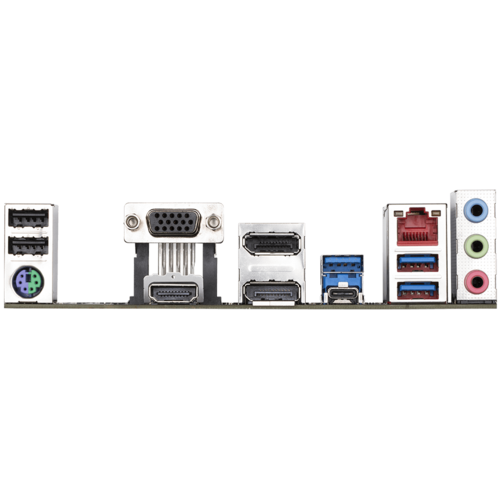

- Panel E/S Trasero
- 2 x USB 2.0/1.1 ports
- 1 x PS/2 keyboard/mouse port
- 1 x D-Sub port
- 1 x HDMI port
- 2 x DisplayPorts
- 3 x USB 3.2 Gen 1 ports
- 1 x USB Type-C® port, with USB 3.2 Gen 2 support
- 1 x RJ-45 port
- 3 x audio jacks
- Formato Micro ATX Form Factor; 24.4cm x 24.4cm
