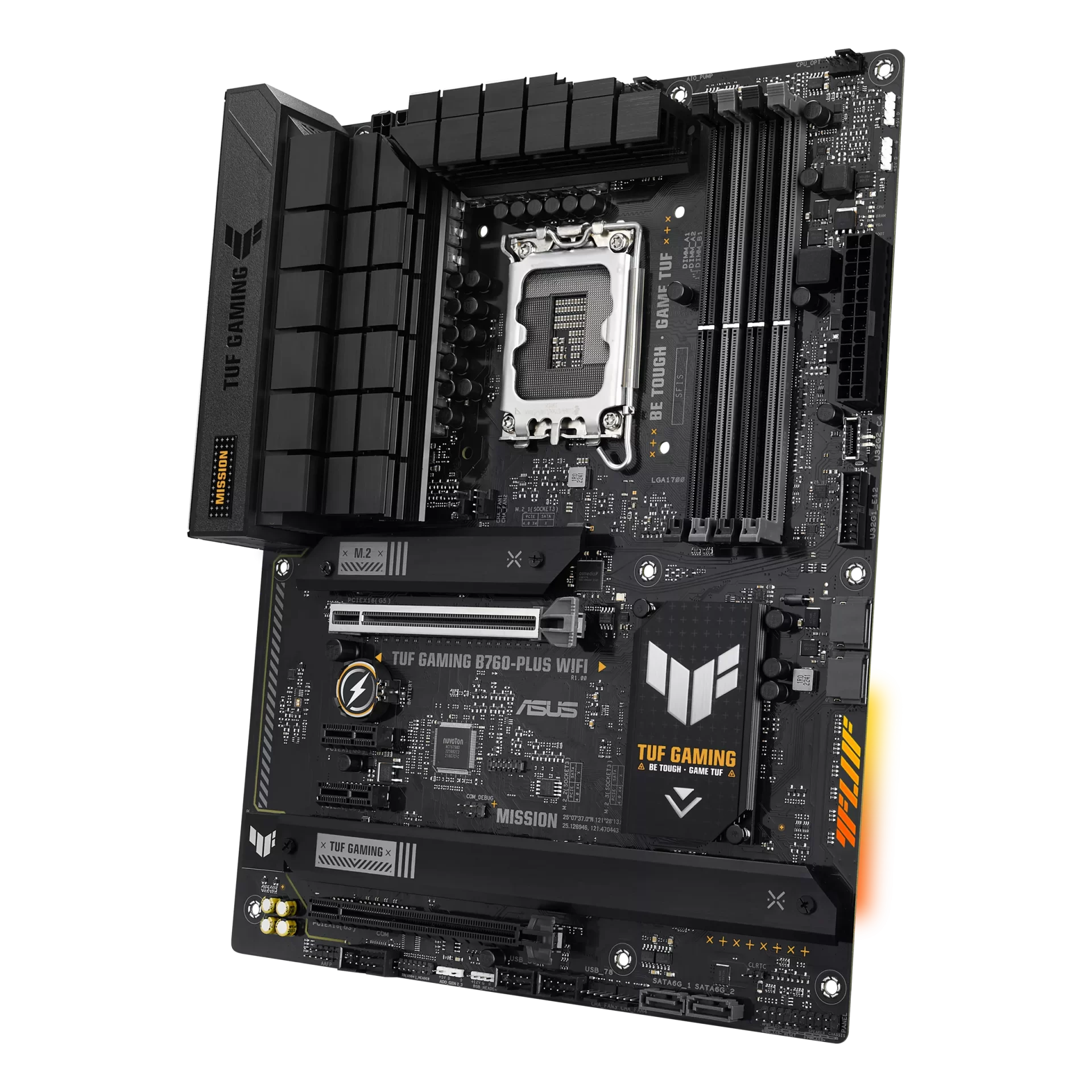

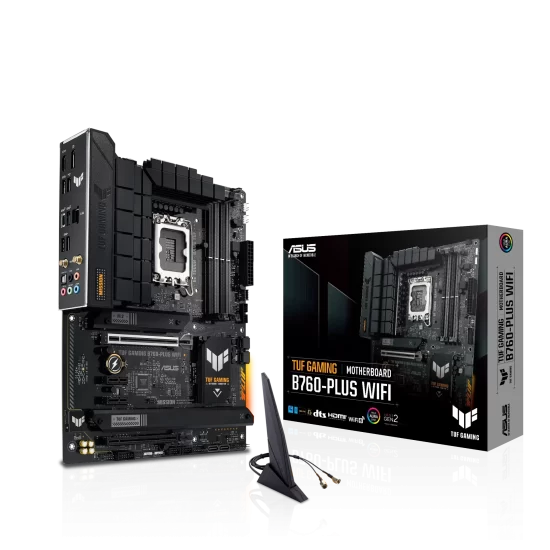

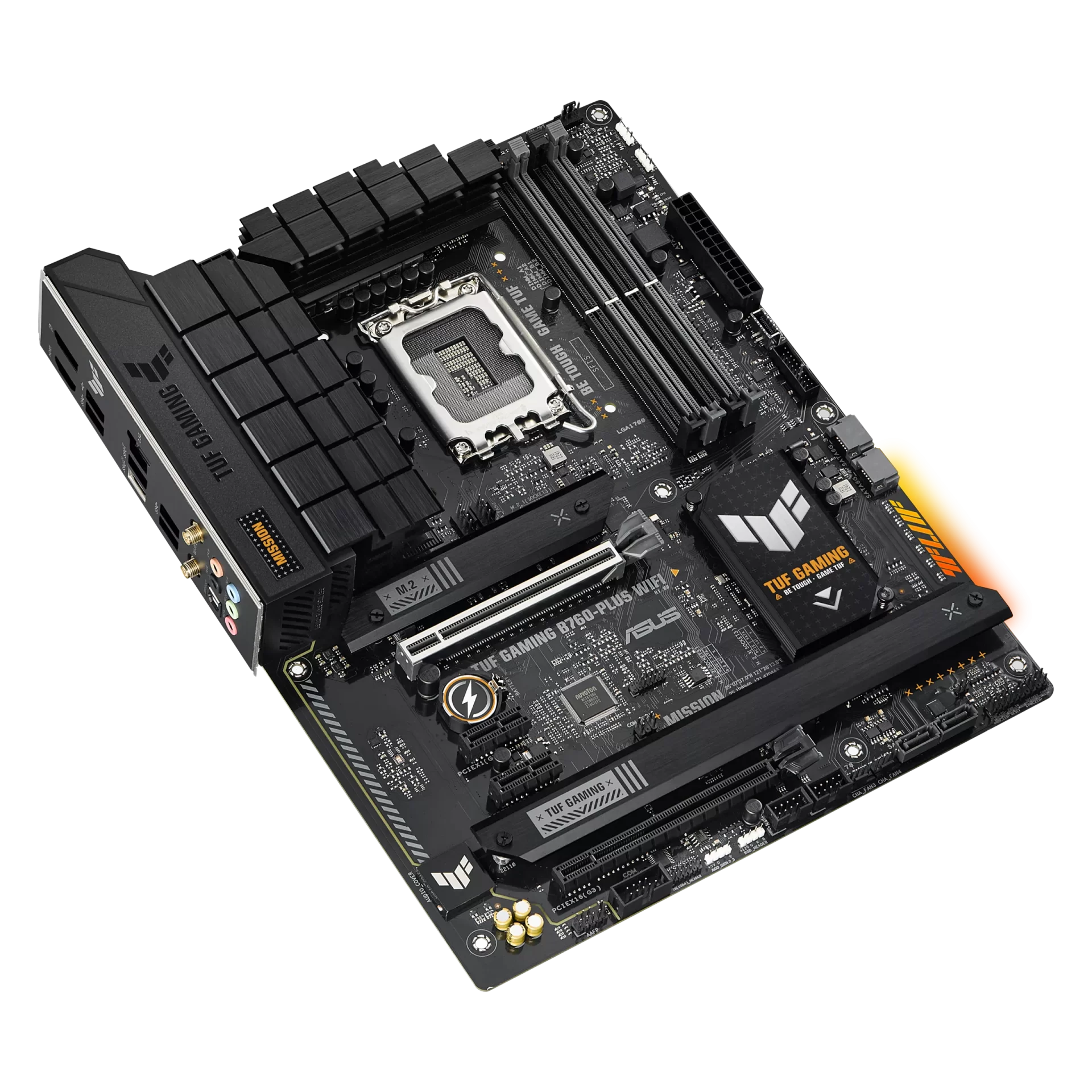

Asus TUF Gaming B760-Plus WIFI Mainboard 13va Gen DDR5

Descripción

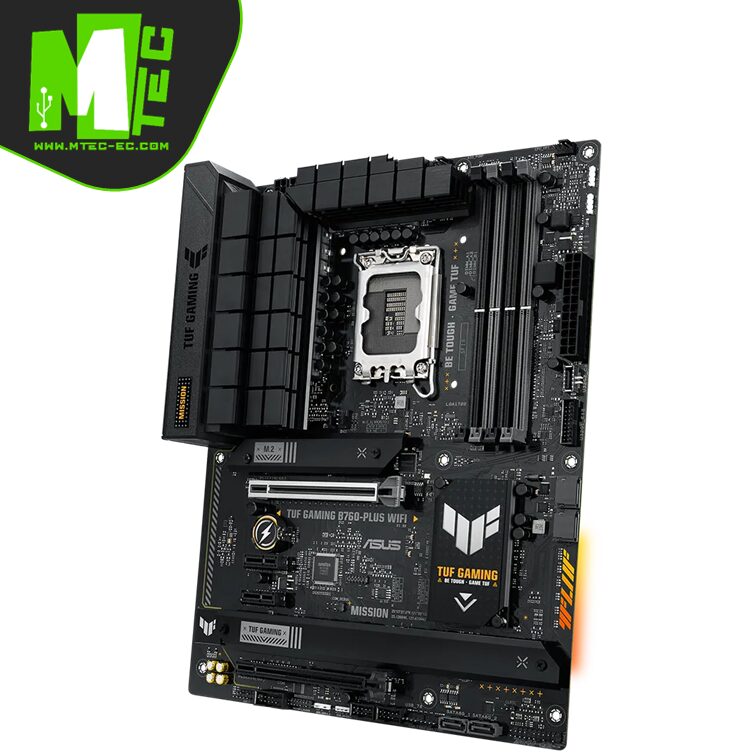

Asus TUF Gaming B760-Plus WIFI
CPU Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
Chipset Intel® B760 Chipset
Memory 4 x DIMM, Max. 192GB, DDR5
Graphics
- 1 x DisplayPort**
- 1 x HDMITM port***
Expansion Slots
- Intel® 13th & 12th Gen Processors
- 1 x PCIe 5.0 x16 slot
- Intel® B760 Chipset
- 1 x PCIe 3.0 x16 slot (supports x4 mode)*
- 2 x PCIe 3.0 x1 slots*
Storage
- Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
- Intel® 13th & 12th Gen Processors
- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- Intel® B760 Chipset
- M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
- M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- 4 x SATA 6Gb/s ports
Ethernet 1 x Realtek 2.5Gb Ethernet
Wireless & Bluetooth
- Wi-Fi 6
- 2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
- Supports 2.4/5GHz frequency band
- Bluetooth® v5.2*
USB
Rear USB (Total 6 ports)
- 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
- 1 x USB 3.2 Gen 2 port (1 x Type-A)
- 3 x USB 3.2 Gen 1 ports (3 x Type-A)
- 1 x USB 2.0 port (1 x Type-A)
Front USB (Total 7 ports)
- 1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
- 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC

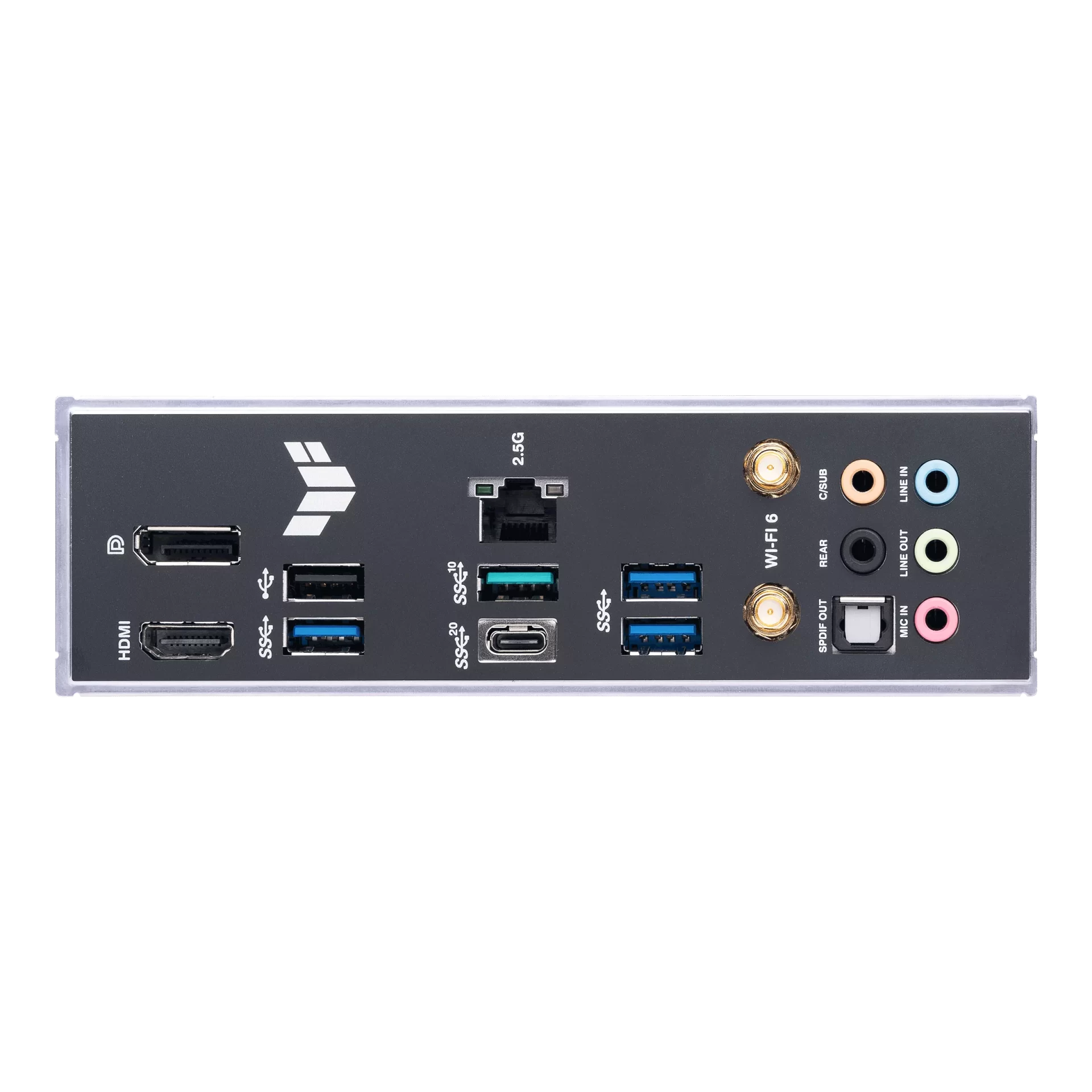

Back Panel I/O Ports
- 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
- 1 x USB 3.2 Gen 2 port (1 x Type-A)
- 3 x USB 3.2 Gen 1 ports (3 x Type-A)
- 1 x USB 2.0 port (1 x Type-A)
- 1 x DisplayPort
- 1 x HDMITM port
- 1 x Wi-Fi Module
- 1 x Realtek 2.5Gb Ethernet port
- 5 x Audio jacks
- 1 x Optical S/PDIF out port
- Internal I/O Connectors
- Fan and Cooling related
- 1 x 4-pin CPU Fan header
- 1 x 4-pin CPU OPT Fan header
- 1 x 4-pin AIO Pump header
- 4 x 4-pin Chassis Fan headers
- Power related
- 1 x 24-pin Main Power connector
- 1 x 8-pin +12V Power connector
- 1 x 4-pin +12V Power connector
- Storage related
- 3 x M.2 slots (Key M)
- 4 x SATA 6Gb/s ports
Miscellaneous
- 3 x Addressable Gen 2 headers
- 1 x Aura RGB header
- 1 x Clear CMOS header
- 1 x COM Port header
- 1 x Front Panel Audio header (AAFP)
- 1 x 20-3 pin System Panel header with Chassis intrude function
- 1 x Thunderbolt™ (USB4®) header

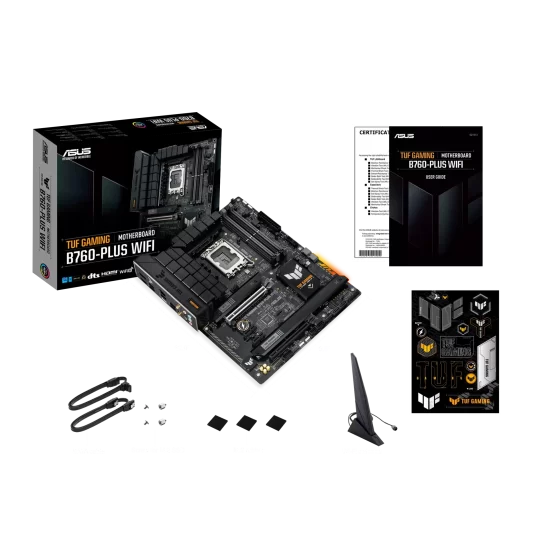

Accessories
- Cables
- 2 x SATA 6Gb/s cables
- Miscellaneous
- 1 x ASUS Wi-Fi moving antenna
- 1 x TUF Gaming sticker
- 2 x M.2 Rubber Packages
- 1 x Screw package for M.2 SSD
- Documentation
- 1 x TUF Certification card
- 1 x User guide
Operating System Windows® 11, Windows® 10 64-bit
Form Factor ATX Form Factor
