Descripción

• CPU Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
• Chipset Intel® B760 Chipset
• Memory
  • 2 x DIMM, Max. 64GB, DDR5 7600(OC)/ 7466(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*
  • Dual Channel Memory Architecture
  • Supports Intel® Extreme Memory Profile (XMP)
  • OptiMem II
• Graphics
  • 1 x DisplayPort**
  • 1 x HDMI®***
• Expansion Slots
• Intel® 13th & 12th Gen Processors*
  • 1 x PCIe 5.0 x16 slot
• Storage
  • Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
  • Intel® 13th & 12th Gen Processors
  • M.2_1 slot (Key M), type 2260/2280 (supports PCIe 4.0 x4 mode)
  • Intel® B760 Chipset**
  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • 4 x SATA 6Gb/s ports
• Ethernet
  • 1 x Intel® 2.5Gb Ethernet
  • ASUS LANGuard
• Wireless & Bluetooth
  • Wi-Fi 6E
  • 2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
  • Supports 2.4/5/6GHz frequency band*
  • Bluetooth® v5.3
• USB
  • Rear USB (Total 8 ports)
  • 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
  • 4 x USB 3.2 Gen 1 ports (3 x Type-A +1 x USB Type-C®)
  • 3 x USB 2.0 ports (3 x Type-A)
  • Front USB (Total 5 ports)
  • 1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
  • 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  • 1 x USB 2.0 header supports additional 2 USB 2.0 ports
• Audio
  • ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A
  • – Impedance sense for front and rear headphone outputs
  • – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
  • – Supports up to 32-Bit/192 kHz playback*
  • Audio Features
  • – SupremeFX Shielding Technology
  • – Savitech SV3H712 AMP
  • – Premium audio capacitors

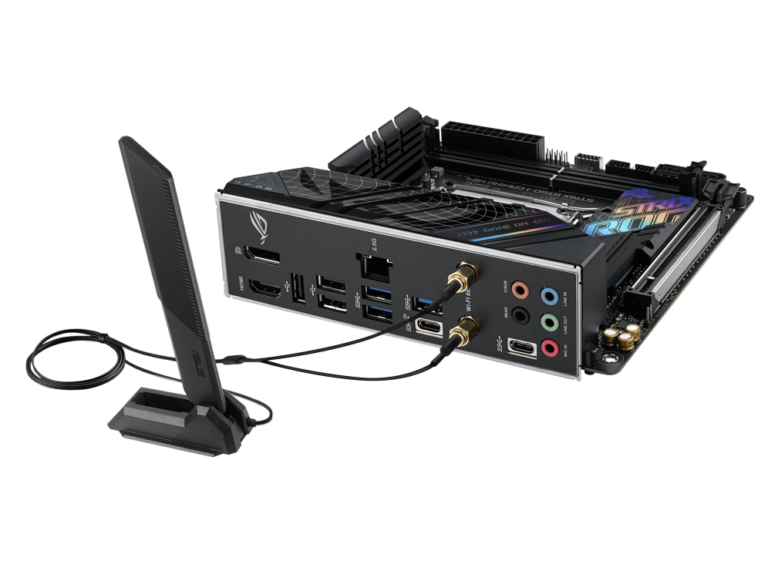

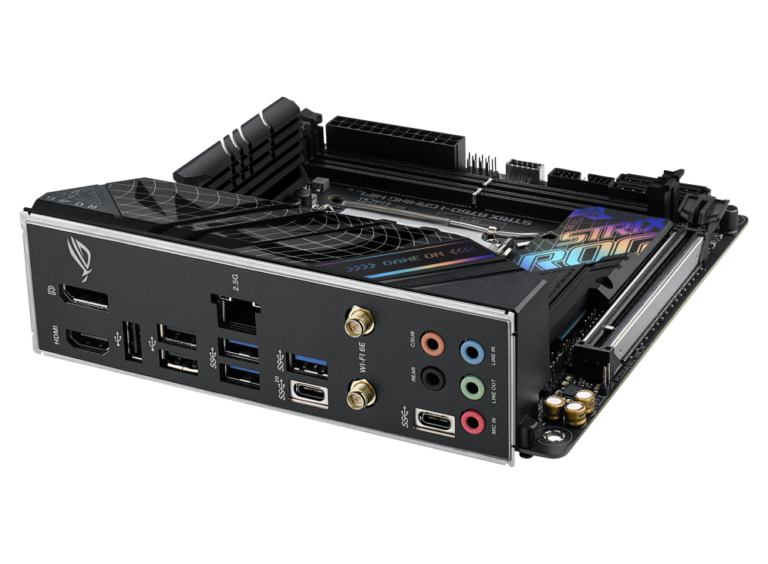

• Back Panel I/O Ports
  • 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
  • 4 x USB 3.2 Gen 1 ports (3 x Type-A +1 x USB Type-C®)
  • 3 x USB 2.0 ports (3 x Type-A)
  • 1 x HDMI® port
  • 1 x DisplayPort
  • 1 x Wi-Fi Module
  • 1 x Intel® 2.5Gb Ethernet
  • 5 x Audio jacks
• Internal I/O Connectors
  • Fan and Cooling related
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin Chasis Fan header
  • 1 x 4-pin AIO Pump header
  • Power related
  • 1 x 24-pin Main Power connector
  • 1 x 8-pin +12V Power connector
  • Storage related
  • 2 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports
  • USB
  • 1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
  • 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  • 1 x USB 2.0 headers support additional 2 USB 2.0 ports
  • Miscellaneous
  • 1 x Addressable Gen 2 headers
  • 1 x Aura RGB header
  • 1 x Clear CMOS header
  • 1 x Front Panel Audio header (AAFP)
  • 1 x S/PDIF Out header
  • 1 x Speaker header
  • 1 x 10-1 pin System Panel header
  • 1 x Thermal Sensor header
• Accessories
  • Cables
  • 2 x SATA 6Gb/s cables
  • 1 x ROG USB2.0 splitter cable
  • 1 x Panel cable
  • Additional Cooling Kit
  • 1 x Thermal pad for M.2
  • Miscellaneous
  • 1 x ASUS Wi-Fi moving antennas
  • 1 x Cable ties package
  • 1 x M.2 Rubber Package
  • 2 x Screw packages for M.2 SSD
  • 1 x M.2 bracket
  • 1 x ROG key chain
  • 1 x ROG STRIX stickers
  • 1 x ROG STRIX thank you card
  • Documentation
  • 1 x User manual
• Operating System
  • Windows® 11 64-bit, Windows® 10 64-bit
• Form Factor
  • Mini-ITX Form Factor
  • 6.7 inch x 6.7 inch ( 17 cm x 17 cm )
