Descripción

• Zócalo LGA1151 para procesadores de escritorio Intel® Core ™ de 9º / 8º gen
• CrossChill EK III y Water Cooling Zone: mantenga su sistema fresco cuando la acción se calienta
• ROG Eco-System: iluminación Aura Sync RGB exclusiva de ASUS, que incluye encabezados para tiras RGB estándar y direccionables.
• Conectividad para juegos: Aquantia 5G LAN, Intel Gigabit Ethernet, LANGuard, 2×2 802.11ac Wi-Fi, Dual M.2, USB 3.1 Gen 2 Tipo-A y conectores Type-C ™.
• Cambie a: Optimización de 5 vías: ajuste automatizado en todo el sistema, proporcionando Overclocking AI y perfiles de enfriamiento hechos para su equipo
• Audio para juegos: SupremeFX y Sonic Studio III: audio de alta fidelidad que te acerca más a la acción.

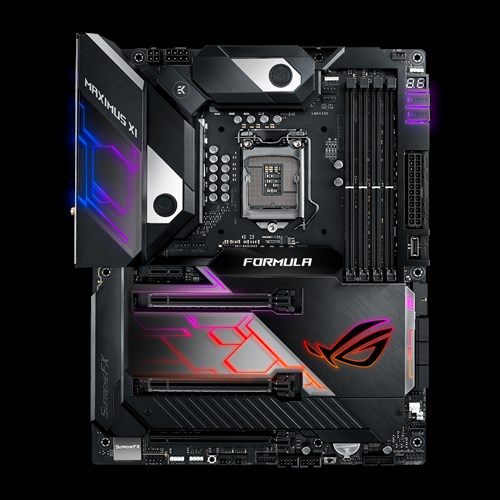

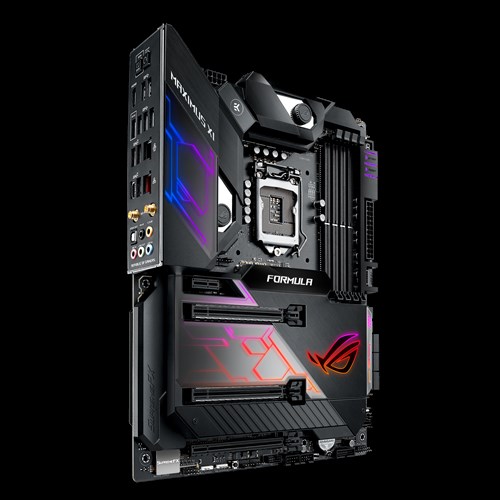

• ROG Maximus XI Formula muestra el diseño elegante, refinado y funcional que se ha convertido en un icono en la serie de placas base Maximus. Con su distintivo integrado CrossChill EK 2 «LiveDash OLED con más características personalizadas III bloque de enfriamiento, software inteligente de overclocking y un impresionante acabado de espejo pulido, la Fórmula de última generación está lista para hacer brillar su plataforma de exhibición.

• CPU Intel® Socket 1151 9th / 8th Gen Intel^® Core™, Pentium^® Gold and Celeron^® Processors
• Chipset Build in Intel® Z390
• Memory 4 x DIMM, Max. 64GB, DDR4 4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-
• Integrated Graphics Processor- Intel® UHD Graphics support
  VGA output support : HDMI port
  – Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 30 Hz / x @ Hz
• Multi-GPU Support
  Supports NVIDIA® 2-Way SLI™ Technology
  Supports AMD 3-Way CrossFireX™ Technology
• Expansion Slots
  Socket 1151 for 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors
  2 x PCIe 3.0 x16
  Intel® Z390 Chipset
  1 x PCIe 3.0 x16 (max at x4 mode) *
  1 x PCIe 3.0/2.0 x1
• Storage
  Socket 1151 for 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors :
  1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*²
  1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
  Intel® Optane™ Memory Ready
• LAN
  Aquantia AQC111C 5G LAN
  Intel® I219V
  Anti-surge LANGuard
  ROG GameFirst V Technology
• Wireless Data Network
  Intel® Wireless-AC 9560
  Wi-Fi 802.11 b/g/n/ac
  Supports dual band frequency 2.4/5 GHz
  Supports channel bandwidth: HT20/HT40/HT80/HT160
• Bluetooth Bluetooth® 5.0
• Audio
  ROG SupremeFX 8-Channel High Definition Audio CODEC S1220
  – Impedance sense for front and rear headphone outputs
  – Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
  – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
  – SupremeFX Shielding Technology
  – ESS® ES9023P
  – Supports up to 32-Bit/192kHz playback *³
  Audio Feature :
  – Optical S/PDIF out port(s) at back panel

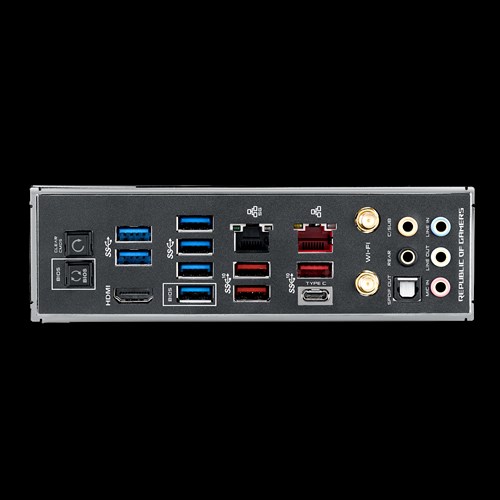

• USB Ports
  Intel® Z390 Chipset :
  1 x USB 3.1 Gen 2 front panel connector port(s)
  Intel® Z390 Chipset :
  4 x USB 3.1 Gen 2 port(s)
  Intel® Z390 Chipset :
  8 x USB 3.1 Gen 1 port(s)
  Intel® Z390 Chipset :
  4 x USB 2.0 port(s)
  ASMedia® USB 3.1 Gen 1 controller :
  2 x USB 3.1 Gen 1 port(s)
• ROG Exclusive Features
  ROG Armor
  ReTry Button
  Start Button
  Extreme Engine Digi+ :
  – MicroFine Alloy Chokes
  – 10K Black Metallic Capacitors
  Extreme Tweaker
  Overclocking Protection :
  – ASUS C.P.R.(CPU Parameter Recall)
  Crosschill EK III
  ROG Patented Pre-mounted I/O Shield
  ROG Exclusive Software
  – Mem Tweakit
  – RAMCache III
  – RAMDisk
  – CPU-Z
  – GameFirst V
  – Sonic Studio III + Sonic Studio Link
  – Sonic Radar III
• Special Features
  5-Way Optimization by Dual Intelligent Processors 5
  – 5-way Optimization tuning key perfectly consolidates TPU Insight, EPU Guidance,and Turbo app
  2 ” LiveDash
