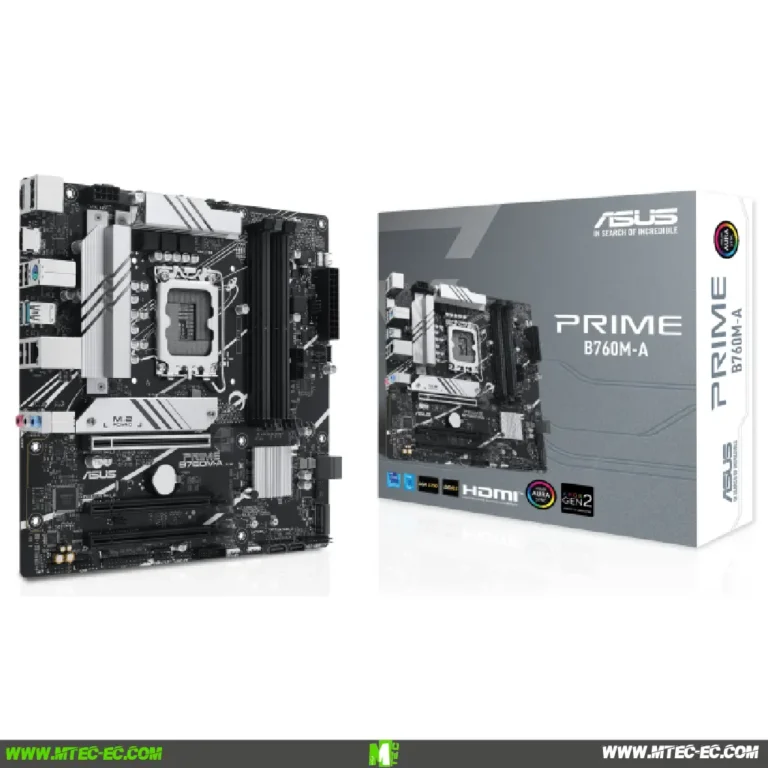

Asus Prime B760M-A DDR5 Mainboard Intel LGA1700 mATX

PRIME B760M-A

• CPU Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
• Chipset Intel® B760 Chipset
• Memory 4 x DIMM slots, Max. 128GB, DDR5
• Graphics
  • 1 x DisplayPort**
  • 2 x HDMI
• Expansion Slots
  • Intel® 13th & 12th Gen Processors
  • 1 x PCIe 4.0 x16 slot
  • Intel® B760 Chipset
  • 1 x PCIe 4.0 x16 slot (supports x4 mode)
  • 1 x PCIe 4.0 x16 slot (supports x1 mode)
  • Storage
  • Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports*
  • Intel® 13th & 12th Gen Processors
  • M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • Intel® B760 Chipset
  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • 4 x SATA 6Gb/s ports
• Ethernet 1 x Realtek 2.5Gb Ethernet
• Audio Realtek 7.1 Surround Sound High Definition Audio CODEC*

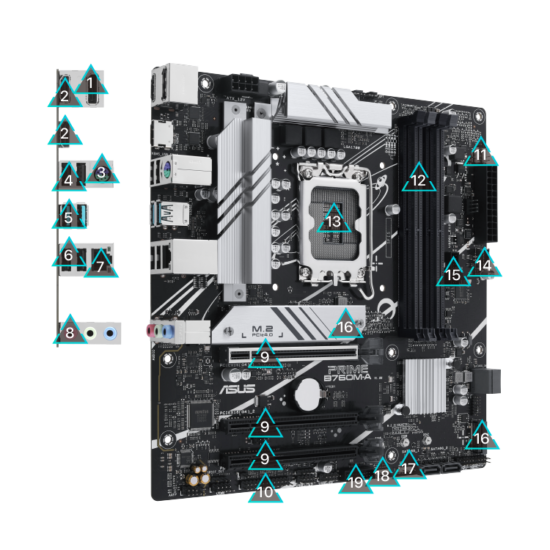

• Back Panel I/O Ports
  • 2 x USB 3.2 Gen 2 ports (2 x Type-A )
  • 4 x USB 2.0 ports (4 x Type-A)
  • 1 x DisplayPort
  • 2 x HDMITM ports
  • 1 x Wi-Fi Module
  • 1 x Realtek 2.5Gb Ethernet port
  • 3 x Audio jacks
  • 1 x PS/2 Keyboard/Mouse combo port
  • Internal I/O Connectors
  • Fan and Cooling related
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin CPU OPT Fan header
  • 2 x 4-pin Chassis Fan headers
  • Power related
  • 1 x 24-pin Main Power connector
  • 1 x 8-pin +12V Power connector
  • Storage related
  • 2 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports
  • USB
  • 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
  • 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
  • 1 x USB 2.0 header supports 1 additional USB 2.0 port
  • Miscellaneous
  • 3 x Addressable Gen 2 headers
  • 1 x Aura RGB header
  • 1 x Clear CMOS header
  • 1 x COM Port header
  • 1 x Front Panel Audio header (AAFP)
  • 1 x LPT header
  • 1 x S/PDIF Out header
  • 1 x SPI TPM header (14-1pin)
  • 1 x 20-3 pin System Panel header with Chassis intrude function
• Operating System Windows® 11, Windows® 10 64-bit
• Form Factor mATX Form Factor
