Descripción

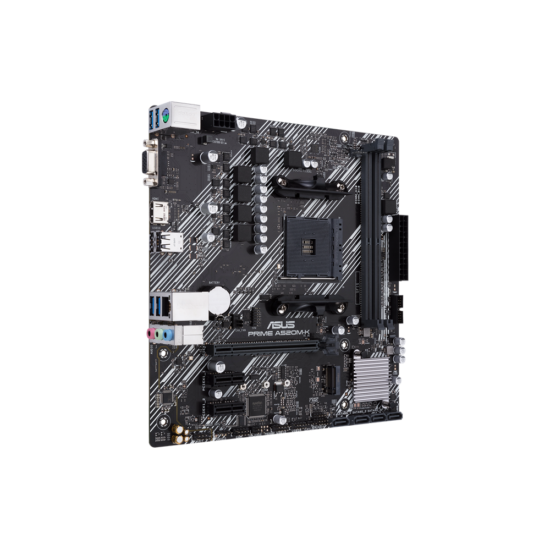

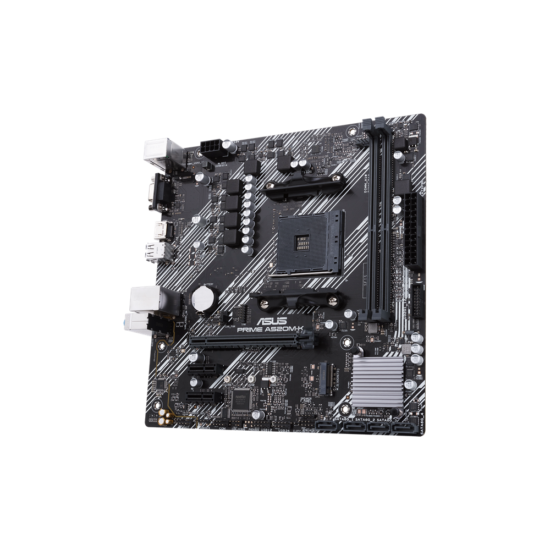

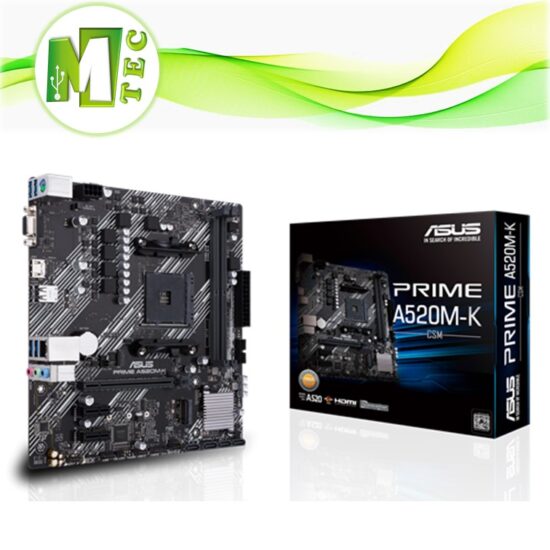

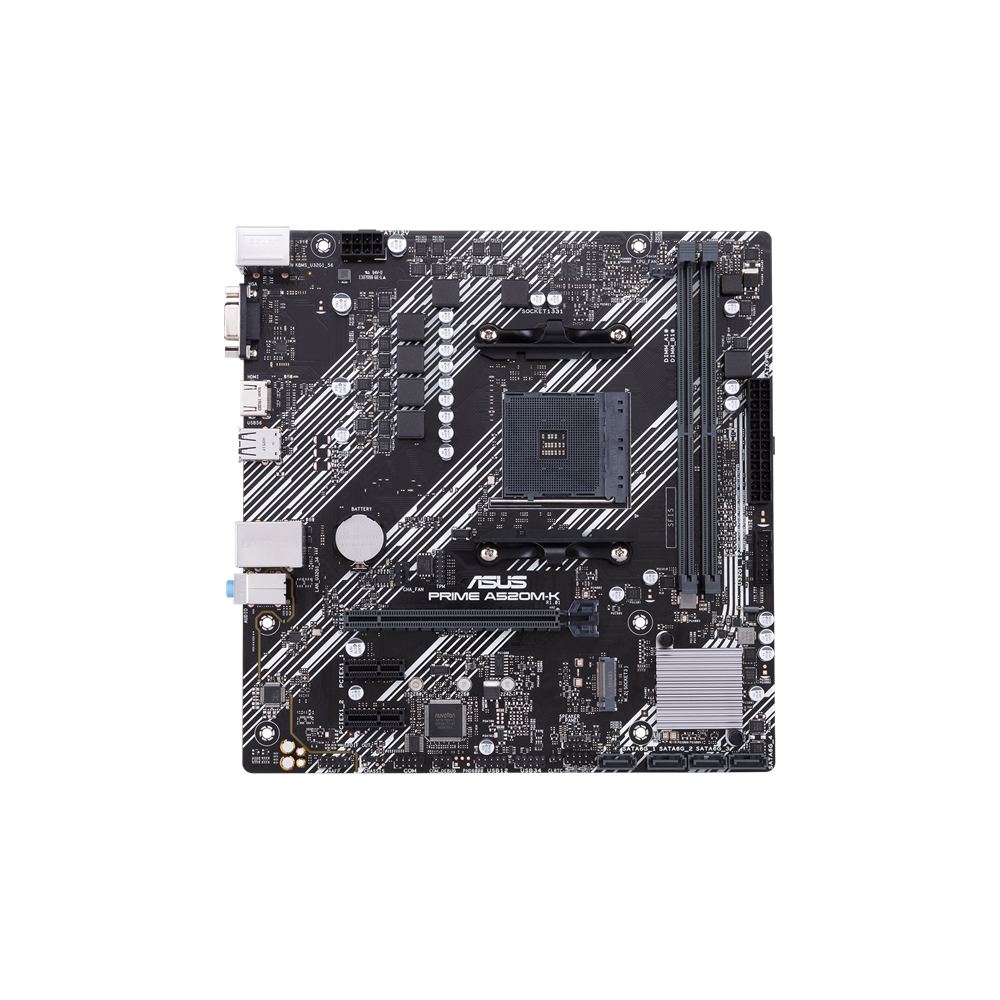

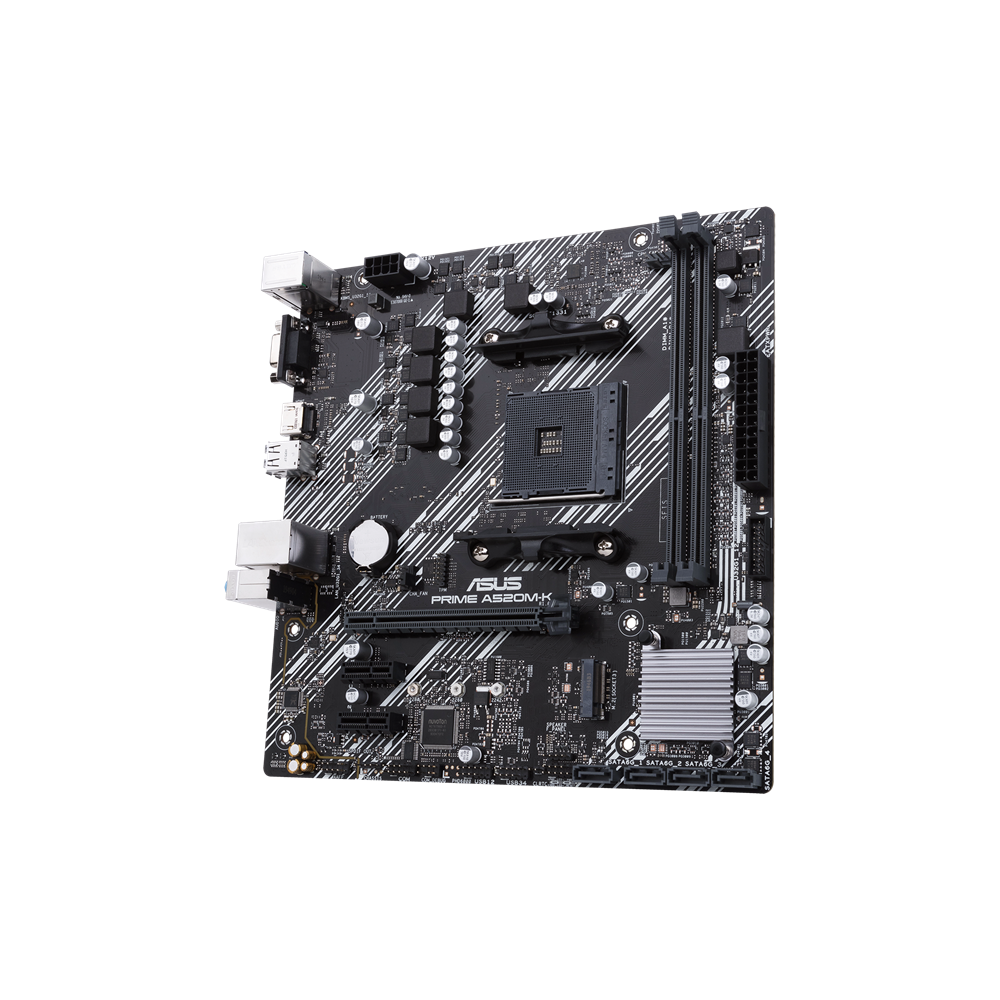

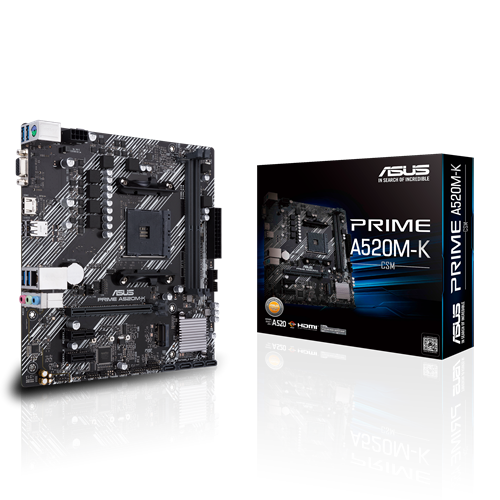

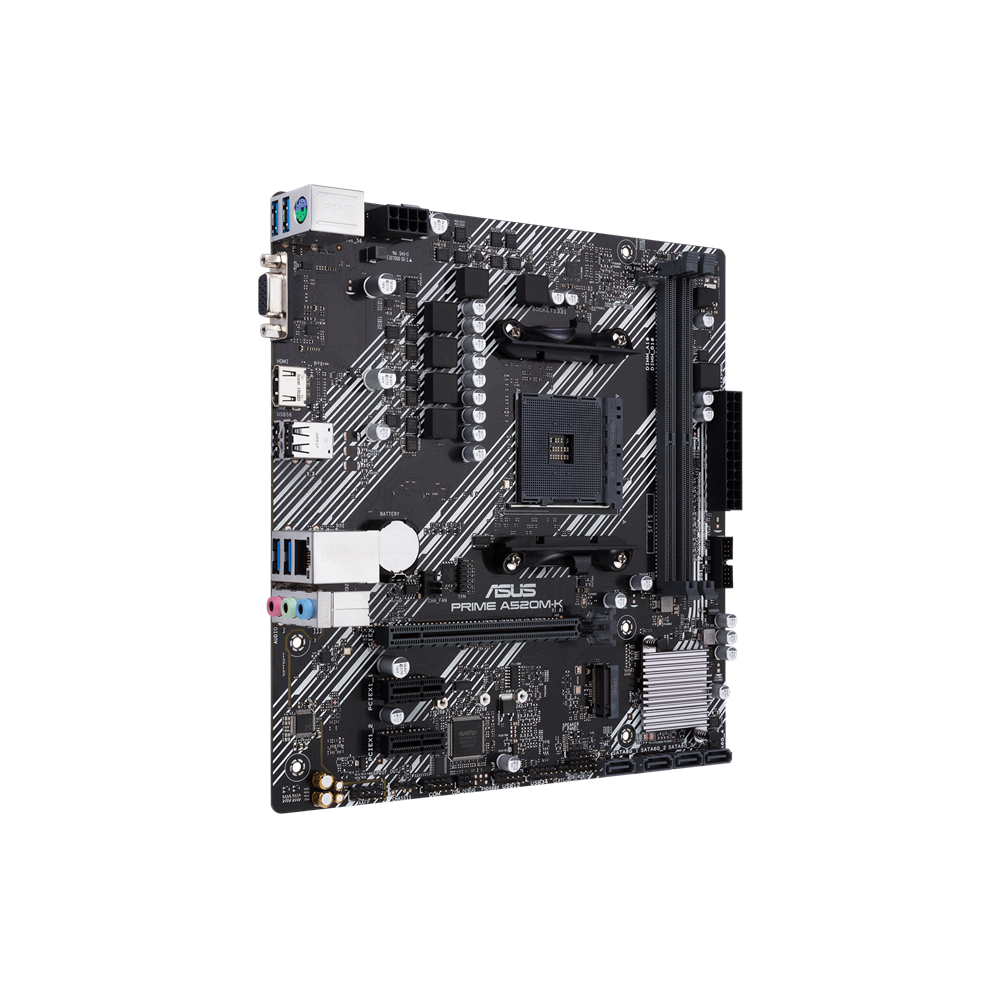

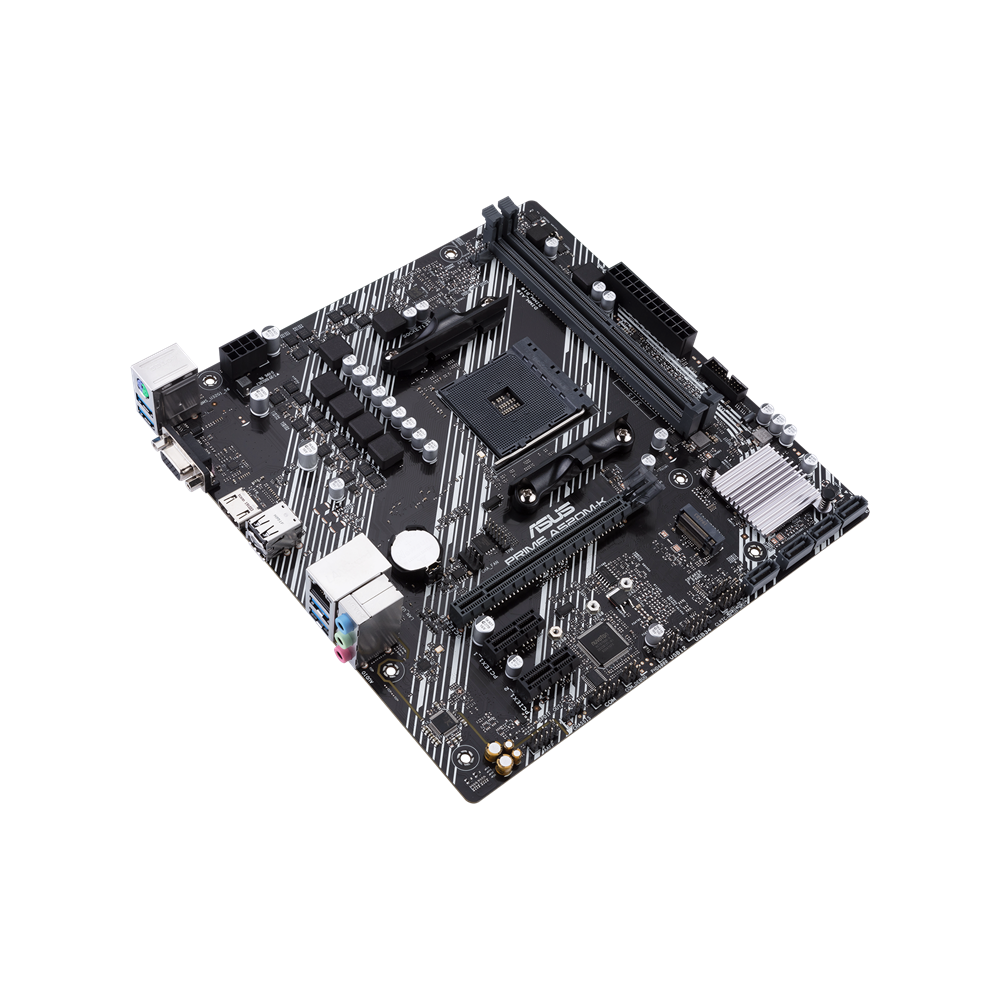

• Asus Prime A520m-K II
•  CPU
  • Build in AMD AM4 Socket for 3rd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors *
  • * Refer to www.asus.com for CPU support list
• Chipset
  • AMD A520
• Memory
  • 2 x DIMM, Max. 64GB, DDR4 4600(O.C)/4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *
  • Dual Channel Memory Architecture
  • ECC Memory (ECC mode) support varies by CPU.
  • * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  • * The maximum memory frequency supported varies by processor.
• Graphic
  • 1 x D-Sub
  • 1 x HDMI 2.1(4K@60HZ)
• Expansion Slots
  • 3rd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors
  • 1 x PCIe 3.0 x16 (x16 mode)
  • AMD A520 Chipset
  • 2 x PCIe 3.0 x1
• Storage
  • Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports
  • 3rd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors :
  • 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support
  • AMD A520 Chipset :
  • 4 x SATA 6Gb/s port(s),
  • Support Raid 0, 1, 10
• LAN
  • Realtek RTL8111H 1Gb Ethernet
  • ASUS LANGuard
• Audio
  • Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC *
  • – Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
  • Audio Feature :
  • – Audio Shielding
  • – Dedicated audio PCB layers
  • * Choose the chassis with HD audio module in front panel to support 8-channel audio output.
• USB Ports
  • Rear USB Port ( Total 7 )
  • 4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
  • 2 x USB 2.0 port(s)(2 x Type-A)
  • Front USB Port ( Total 6 )
  • 2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
  • 4 x USB 2.0 port(s)(4 x Type-A)
• Software Features
  • ASUS Exclusive Software
  • Armoury Crate
  • AI Suite 3
  • – Performance and Power Saving Utility
  • TurboV EVO
  • EPU
  • Digi+ VRM
  • Fan Xpert
  • – EZ update
  • ASUS CPU-Z
  • AI Charger
  • DAEMON Tools
  • Norton Anti-virus software (Free Trial for 60 days)
  • WinRAR
  • UEFI BIOS
  • ASUS EZ DIY
  • – ASUS CrashFree BIOS 3
  • – ASUS EZ Flash 3
  • – ASUS UEFI BIOS EZ Mode
• ASUS Special Features
  • ASUS 5X PROTECTION III
  • – ASUS DIGI+ VRM
  • – ASUS LANGuard
  • – ASUS Overvoltage Protection
  • – ASUS SafeSlot Core
  • – ASUS Stainless-Steel Back I/O
  • ASUS Q-Design
  • – ASUS Q-DIMM
  • – ASUS Q-Slot
  • ASUS Thermal Solution
  • – Aluminum heatsink design
• Back I/O Ports
  • 1 x PS/2 keyboard/mouse combo port(s)
  • 1 x D-Sub
  • 1 x HDMI
  • 1 x LAN (RJ45) port(s)
  • 1 x USB 3.2 Gen 2 (teal blue) (1 x Type-A)
  • 4 x USB 3.2 Gen 1 (blue) Type-A
  • 2 x USB 2.0
  • 3 x Audio jack(s)
• Internal I/O Ports
  • 1 x CPU Fan connector(s)
  • 1 x Chassis Fan connector(s)
  • 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
  • 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  • 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
  • 1 x SPI TPM header
  • 4 x SATA 6Gb/s connector(s)
  • 1 x S/PDIF out header(s)
  • 1 x 24-pin EATX Power connector(s)
  • 1 x 8-pin EATX 12V Power connectors
  • 1 x Front panel audio connector(s) (AAFP)
  • 1 x Clear CMOS jumper(s)
  • 1 x System panel connector
  • 1 x COM port header
  • 1 x Speaker connector
• Accessories
  • User’s manual
  • 1 x ACC Express Activation Key Card
  • I/O Shield
  • 2 x SATA 6Gb/s cable(s)
  • 1 x Supporting DVD
  • 1 x M.2 SSD screw package(s)
• BIOS
  • 256 Mb Flash ROM, UEFI AMI BIOS
  • Manageability
  • WOL by PME, PXE
• Operating System
  • Windows® 10 64-bit
• Form Factor
  • mATX Form Factor
  • 8.9 inch x 8.7 inch ( 22.6 cm x 22.1 cm )
